SIMODUAL2

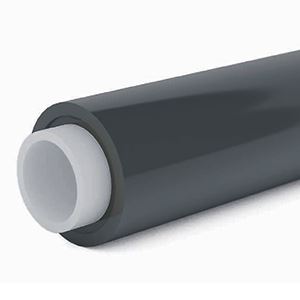

SIMODUAL2 Piping Systems consist of an inner pipe that carries the medium and an external protective pipe. They are both fabricated out of quality-certified and independently monitored components and available as standard as a PE/PE or optionally PP/PE combination.
One of the distinctive elements of this piping system is that it features a continuous, monitorable and pressure-resistant leak containment chamber to give maximum safety. As a pipe material, polyethylene (PE) has a proven track record that spans more than fifty years. As the material of choice for the media-carrying pipe, it offers a number of benefits including a long operational service life, good chemical resistance, proven creep and mechanical strength even at low temperatures.
The unique SIMONA laying method facilitates safe and simple installation using a cascade (stage by stage) fusion jointing technique of the entire piping system. Thanks to the integrated anchor points that makes it particularly practical and saves time and money.
| Range | Description | Carrier - PE or PP | Carrier (Outer) | Containment - PE |
|---|---|---|---|---|
| SIMO | SimoDual2 - 32/90 | 32 mm OD | SDR 11 (17) | 90 mm OD |
| SIMO | SimoDual2 - 63/110 | 63 mm OD | SDR 11 (17) | 110 mm OD |
| SIMO | SimoDual2 - 90/160 | 90 mm OD | SDR 11 (17) | 160 mm OD |
| SIMO | SimoDual2 - 110/180 | 110 mm OD | SDR 11 (17) | 180 mm OD |
| SIMO | SimoDual2 - 160/250 | 160 mm OD | SDR 11 (17) | 250 mm OD |
| SIMO | SimoDual2 - 200/315 | 200 mm OD | SDR 11 (17) | 315 mm OD |
| SIMO | SimoDual2 - 225/355 | 225 mm OD | SDR 11 (17) | 355 mm OD |
** all data is for illustration only based on manufacturers data which is subject to their tolerances and change without notice
pressures stated at 20c
